PTP foil

Product Name

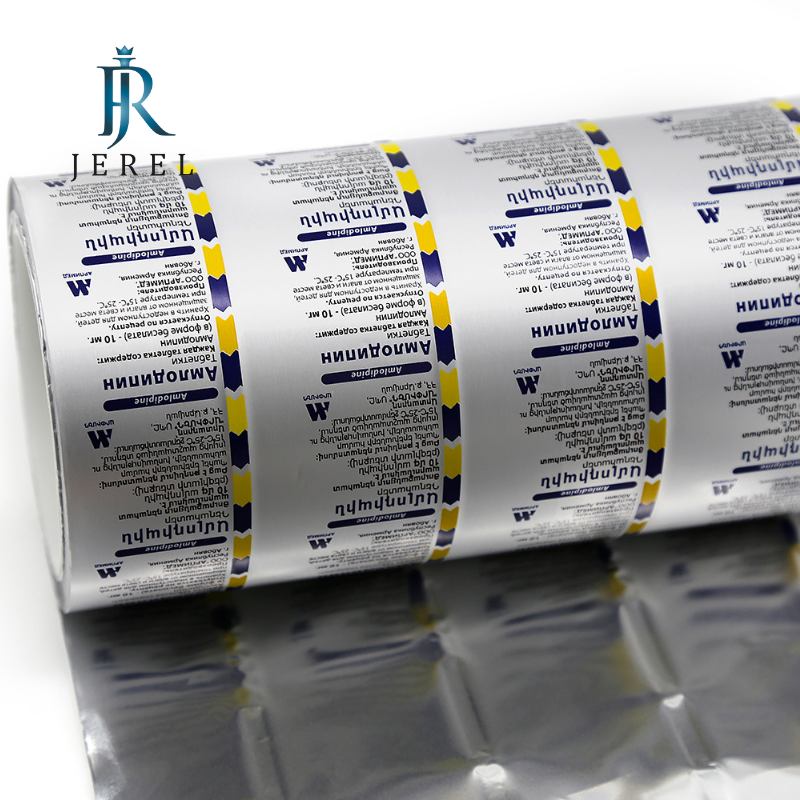

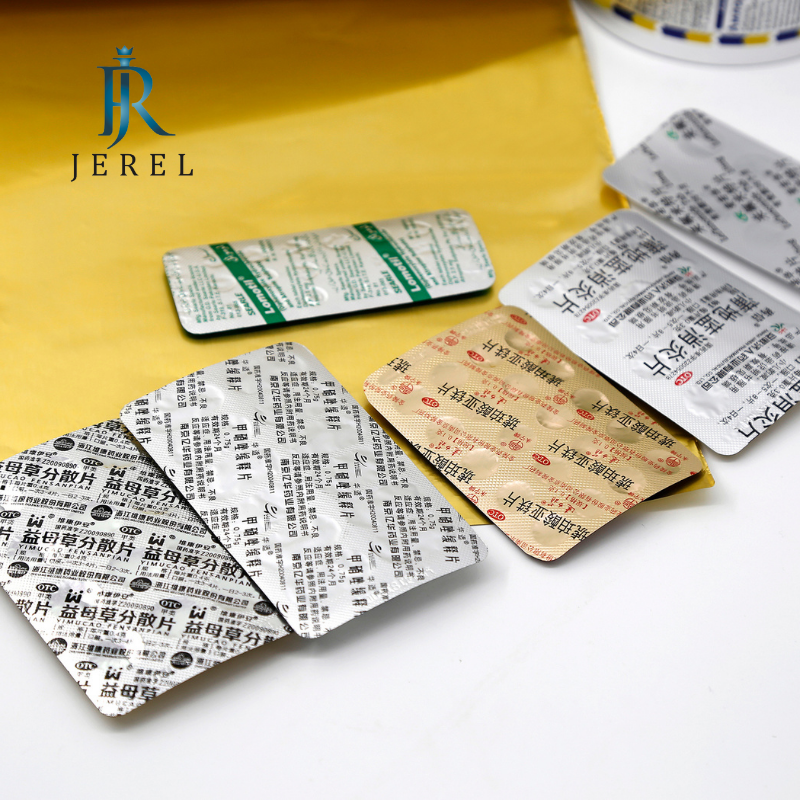

Blister aluminum foil

Alloy

8011 H state

Width

≤600mm

Thickness

20mic, 25mic, 30mic

Construction/Structure

(Unprinted) OP/ALU/VC; (Printed) OP/INK/ALU/INK/VC

ID

76mm / 152mm (3 inches / 6 inches)

OD

240mm

LENGTH

1500m(20mic)

Weight

60g/㎡(20mic); 20kg/roll(250*0.02mm)

Density

2.7g/cm3

Packing & Shipping
Inner Packing: PE bag, Plastic plug, Foam gasket
Outter Packing: Carton box, yellow tape (for packing without pallets), Pallets, Film wrapping

Performance
1 Primer (short as OP) is suitable for uvink, solvent ink, water based ink
2 Heat sealing lacquer (shourt as HSL or VC) is suitable for ALU ALU FOIL/PVC /PP/PS/PET
3 HSL 3-5g is suitable for Asian standards, 6-8g is suitable for European standards
4 Printing colors: 1-3 colors, double-sided printing, full bottom with single color printing
5 Water vapor transmission rate, national standard 0.5g/㎡24h
6 Heat sealing strength 7.0N(PVC),6N(PVDC)

Advantage
1) 100k class cleaning work room to ensure a clean and hygienic production environment.
2) Physics, chemistry, microbiological testing room and various testing instruments, testing according to the national standard YBB00242002-2015
3) Passed China Food and Drug Administration (CFDA) registration and certification of pharmaceutical packaging materials and CDE filing
Registration number: 201502481; CDE NUMBER:B20190004754
4) Passed the US FDA DMF product safety certification, number 029719
5) Passed the ISO9001-2015 quality system certification of British QA company, number: QAIC/CN/131016
6) Passed TUV factory field certification, number: 20751956_P+T
7) Passed the SGS factory site certification, number: QIP-ASI164141
